3300 V dual IGBT module
IHV A 3300 V ，400 A 130 mm雙 IGBT模塊， 采用第二代IGBT和發射極控制二極管 - 為牽引和工業應用提供經驗豐富的解決方案。
也可用作200 A半橋模塊：FF200R33KF2C
特征描述:
優勢:
目標應用:

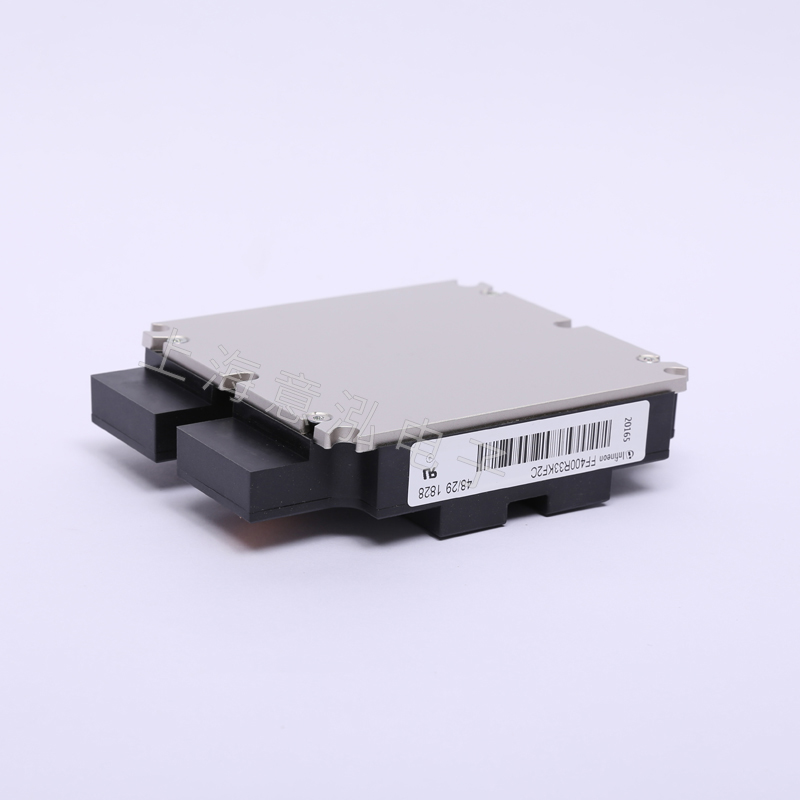

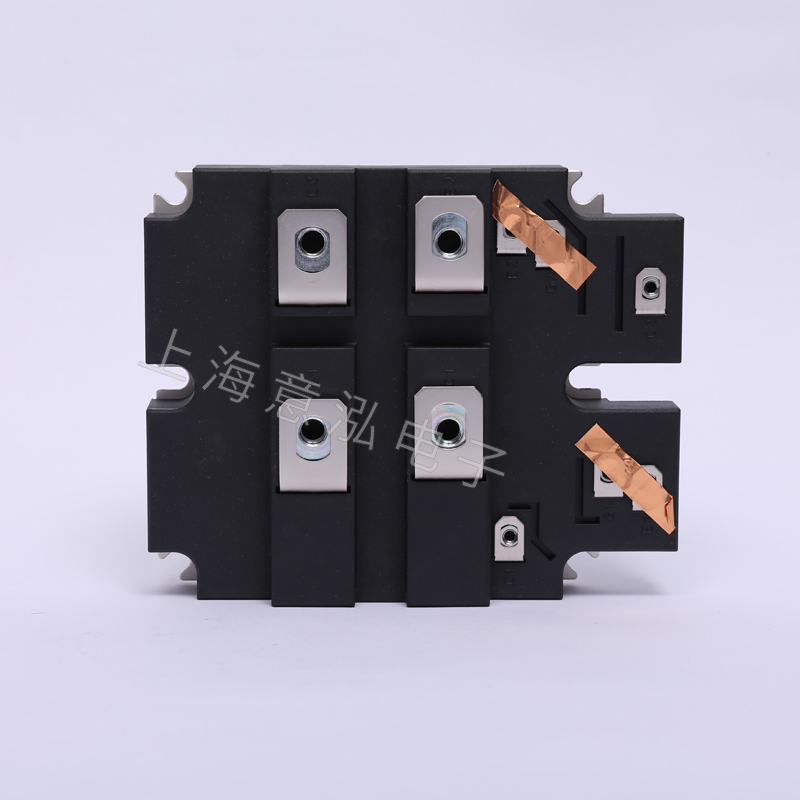

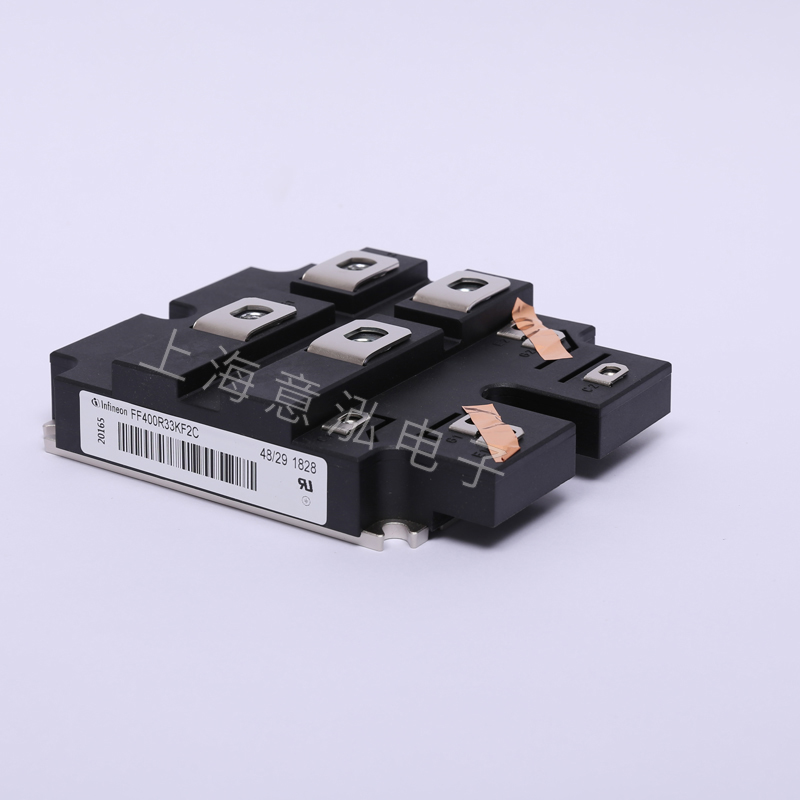

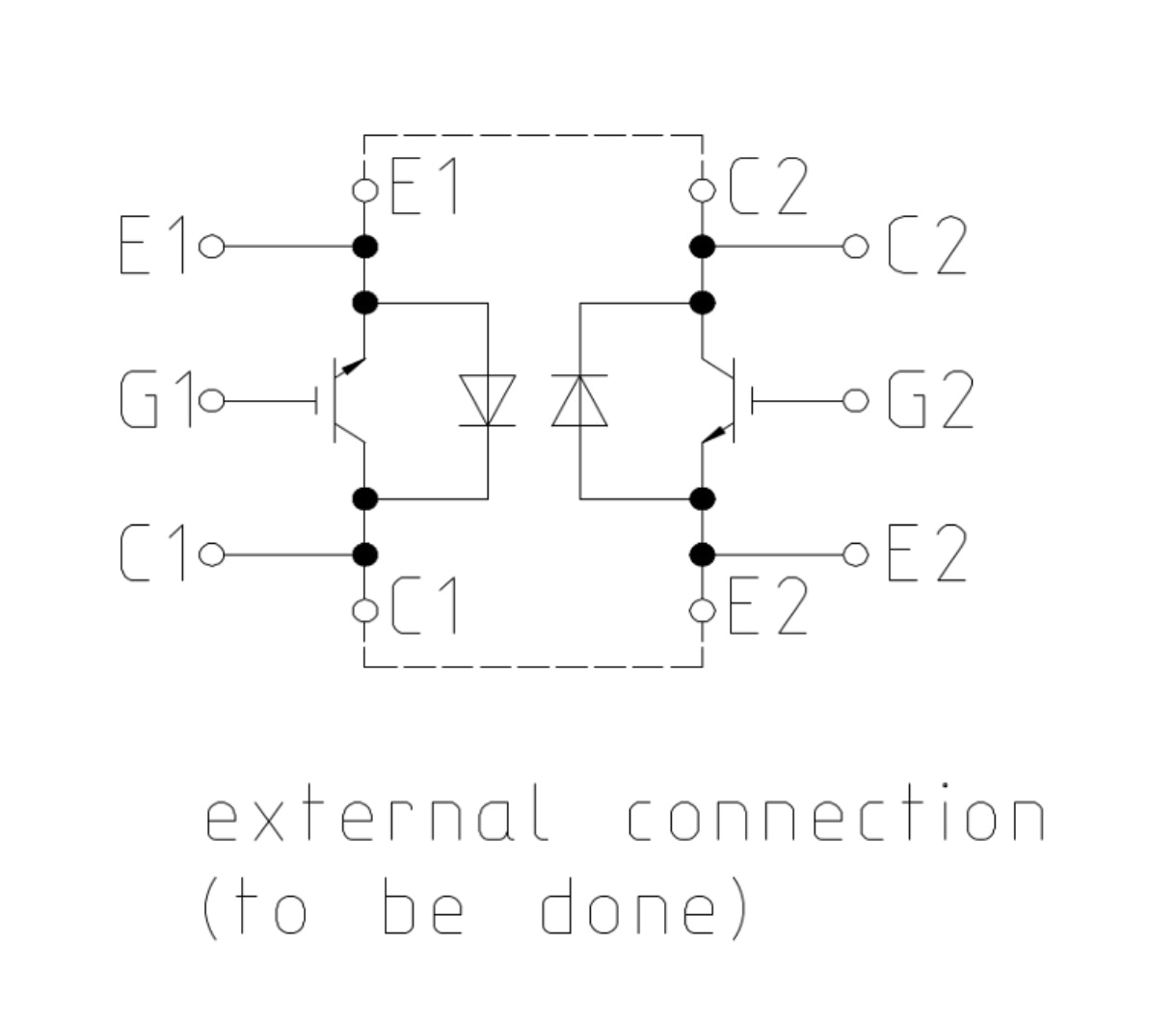

鏈接線路圖表
指標參數
| Parametrics | FF400R33KF2C |
|---|---|
| Configuration | Dual |
| Dimensions (width) | 140.0 mm |
| Dimensions (length) | 130.0 mm |
| Housing | IHV |
| IC(nom) / IF(nom) | 400.0 A |
| IC max | 400.0 A |
| Qualification | Industrial ; Traction |
| Technology | IGBT2 |
| VCE(sat) (Tvj=25°C typ) | 3.4 V |
| VCES / VRRM | 3300.0 V |
| VF (Tvj=25°C typ) | 2.8 V |
| Voltage Class | 3300.0 V |
| 單管（1單元） 1700V 系列 | |||
| FZ1200R17KE3_B2 | 1200A,1700V | FZ1800R17KF6C_B2 | 1800A,1700V |
| FZ1200R17KF6C_B2 | 1200A,1700V | FZ2400R17KE3 | 2400A,1700V |
| FZ1600R17KE3 | 1600A,1700V | FZ2400R17KE3_B2 | 2400A,1700V |
| FZ1600R17KE3_B2 | 1600A,1700V | FZ2400R17KE3_B9 | 2400A,1700V |
| FZ1600R17KF6C_B2 | 1600A,1700V | FZ2400R17KF6C_B2 | 2400A,1700V |
| FZ1800R16KF4 | 1800A,1600V | FZ3600R17KE3 | 3600A,1700V |
| FZ3600R17KE3_B2 | 3600A,1700V | ||
| 2單元 600V系列 | |||
| BSM50GB60DLC | 50A,600V | FF300R06KE3 | 300A,600V |
| BSM75GB60DLC | 75A,600V | FF400R06KE3 | 400A,600V |
| BSM100GB60DLC | 100A,600V | FF200R06ME3 | 200A,600V |
| BSM150GB60DLC | 150A,600V | FF300R06ME3 | 300A,600V |
| BSM200GB60DLC | 200A,600V | FF400R06ME3 | 400A,600V |
| BSM300GB60DLC | 300A,600V | FF450R06ME3 | 450A,600V |
| FF200R06KE3 | 200A,600V | FF600R06ME3 | 600A,600V |
| 2單元 1200V系列 | |||
| FF50R12RT4 | 50A,1200V | FF900R12IP4 | 900A,1200V |
| FF75R12RT4 | 75A,1200V | FF600R12IP4 | 600A,1200V |
| FF100R12RT4 | 100A,1200V | FF600R12IE4 | 600A,1200V |
| FF150R12RT4 | 150A,1200V | FF450R12IE4 | 450A,1200V |
| FF600R12ME4 | 600V,1200V | FF450R12KE4 | 450,1200V |
| FF900R12IE4 | 900A,1200V | FF300R12KE4 | 300A,1200V |
| FF200R12KT3_E | 200A,1200V | FF200R12KE4 | 200A,1200V |
| FF300R12KT3_E | 300A,1200V | FF450R12KT4 | 450,1200V |
| FF400R12KT3_E | 400A,1200V | FF300R12KT4 | 300A,1200V |
| FF225R12ME4 | 225A,1200V | FF200R12KT4 | 200A,1200V |
| FF300R12ME4 | 300A,1200V | FF200R12MT4 | 200A,1200V |
| FF450R12ME4 | 450A,1200V | FF150R12MT4 | 150A,1200V |
| FF600R12IS4F | 600A,1200V | FF100R12MT4 | 100A,1200V |
| FF1400R12IP4 | 1400A,1200V | FF300R12MS4 | 300A,1200V |
| FF900R12IP4D | 900A,1200V | FF150R12MS4G | 150A,1200V |
| FF225R12MS4 | 225A,1200V | FF150R12ME3G | 150A,1200V |
| BSM25GB120DN2 | 25A,1200V | FF150R12YT3 | 150A,1200V |
| BSM35GB120DN2 | 35A,1200V | FF200R12KE3 | 200A,1200V |
| BSM50GB120DLC | 50A,1200V | FF200R12KS4 | 200A,1200V |
| 2單元 1200V系列 | |||
| BSM50GB120DN2 | 50A,1200V | FF200R12KT3 | 200A,1200V |
| BSM75GB120DLC | 75A,1200V | FF225R12ME3 | 225A,1200V |
| BSM75GB120DN2 | 75A,1200V | FF300R12KE3 | 300A,1200V |
| BSM100GB120DLC | 100A,1200V | FF300R12KS4 | 300A,1200V |
| BSM100GB120DLCK | 100A,1200V | FF300R12KT3 | 300A,1200V |
| BSM100GB120DN2 | 100A,1200V | FF300R12ME3 | 300A,1200V |
| BSM100GB120DN2K. | 100A,1200V | FF400R12KE3 | 400A,1200V |
| BSM150GB120DLC | 150A,1200V | FF400R12KF4 | 400A,1200V |
| BSM150GB120DN2 | 150A,1200V | FF400R12KL4C | 400A,1200V |
| BSM200GB120DLC | 200A,1200V | FF400R12KT3 | 400A,1200V |
| BSM200GB120DN2 | 200A,1200V | FF450R12ME3 | 450,1200V, |
| BSM300GB120DLC | 300A,1200V | FF600R12KE3 | 600A,1200V |
| FF75R12YT3 | 75A,1200V | FF600R12KF4 | 600A,1200V |
| FF100R12KS4 | 100A,1200V | FF600R12KL4C | 600A,1200V |
| FF100R12YT3 | 100A,1200V | FF800R12KE3 | 800A,1200V |
| FF150R12KE3G | 150A,1200V | FF800R12KF4 | 800A,1200V |
| FF150R12KS4 | 150A,1200V | FF800R12KL4C | 800A,1200V |
| FF150R12KT3G | 150A,1200V | FF1200R12KE3 | 1200A,1200V |
| 2單元系列 1700V 系列 | |||
| FF200R17KE4 | 200A,1700V | FF450R17ME3 | 450A,1700V |
| FF300R17KE4 | 300A,1700V | BSM50GB170DN2 | 50A,1700V |
| FF150R17KE4 | 150A,1700V | BSM75GB170DN2 | 75A,1700V |
| FF225R17ME4 | 225A,1700V | BSM100GB170DLC | 100A,1700V |
| FF300R17ME4 | 300A,1700V | BSM100GB170DN2 | 100A,1700V |
| FF450R17IE4 | 450A,1700V | BSM150GB170DLC | 150A,1700V |
| FF450R17ME4 | 450A,1700V, | BSM150GB170DN2 | 150A,1700V |
| FF150R17ME3G | 150A,1700V | BSM200GB170DLC | 200A,1700V |
| FF225R17ME3 | 225A,1700V | FF200R17KE3 | 200A,1700V |
| FF300R17ME3 | 300A,1700V | FF300R17KE3 | 300A,1700V |
| FF400R16KF4 | 400A,1600V | FF600R17KE3 | 600A,1700V |
| FF400R17KE3_B2 | 400A,1700V | FF600R17KE3_B2 | 600A,1700V |
| FF400R17KF6C_B2 | 400A,1700V | FF600R17KF6C_B2 | 600A,1700V |
| FF401R17KF6C_B2 | 401A,1700V | FF650R17IE4 | 650A,1700V |
| FF600R16KF4 | 600A,1600V | FF800R17KE3 | 800A,1700V |
| FF800R17KE3_B2 | 800A,1700V | FF1200R17KE3 | 1200A,1700V |
| FF800R17KF6C_B2 | 800A,1700V | FF1200R17KE3_B2 | 1200A,1700V |
| F4-100R06KL4 | 100A，600V | F4-30R06W1E3 | 30A，600V |
| F4-150R06KL4 | 150A，600V | F4-50R06W1E3 | 50A，600V |
| F4-200R06KL4 | 200A，600V | F4-75R06W1E3 | 75A，600V |
